Automatic direction finding system

With a centralized network, the ADF system can exchange data with GPS & GIS, mobile direction finding
stations and fixed direction finding station to detect emitting location for suspected illegal radio frequencies.

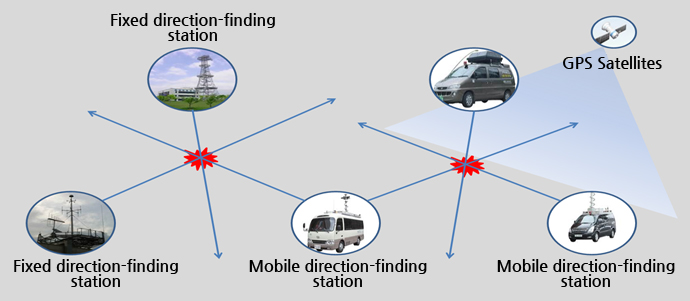

directionFindingMap1

Mobile direction finding station

VHF fixed direction finding control center
Regional station
computer image
HF/VHF transceiver
CDMA network

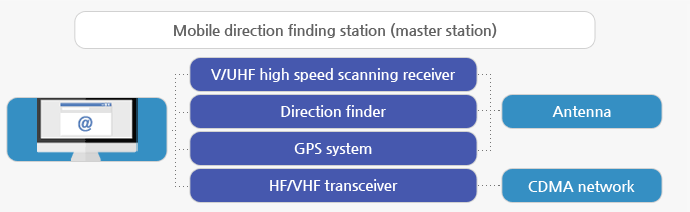

directionFindingMap2

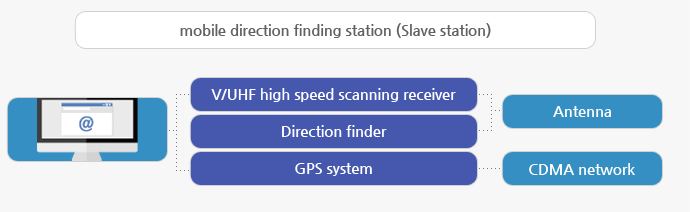

directionFindingMap3
